Wave Equation

The Wave equation is given by: $$\partial_t^2u-\Delta u=0\:\:\:\in\Omega \times (0,\infty),\:\:\:\: u(z,0)=f(z)\:\:\:\forall\: z\in\Omega\:\:\:,\:\:\:\: \partial_tu(z,0)=g(z)\:\:\:\forall\: z\in\Omega\:\:\: and \:\:\:u(z,t)=0 \:\:\:\forall\: z\in\partial\Omega$$ Withy the Separation of variables ansatz $u(z,t)=\sum F_j(z)G_j(t)$ one finds: $$\dfrac{\partial_t^2 G_j}{G_j}=\dfrac{\Delta F_j}{F_j}=-\lambda_j^2=const.\rightarrow \Delta F_j=-\lambda_j^2 F_j\:\:\: F_j=0\:\forall\: z\in\partial\Omega\rightarrow u(z,t)=\sum F_j(z)(a_j\cos{(\lambda_j t})+b_j\sin{(\lambda_j t)})$$ note however that: $$u(z,0)=\sum a_j F_j(z)=f\:\:\:and \:\:\:\partial_tu(z,0)=\sum \lambda_j b_j F_j(z)$$

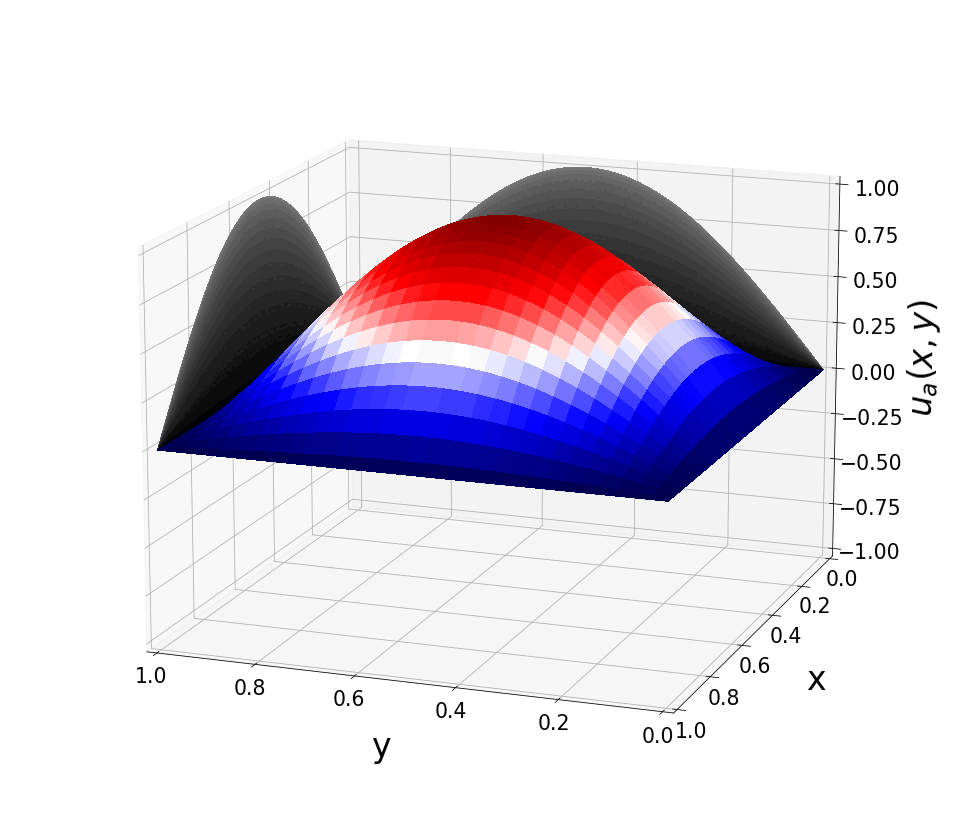

Figure 1: $\Omega=[0,1]\times[0,1]$ and $f(z)=g(z)=F_j(z)=\sin{(\pi x)}\sin{(\pi y)}$ $\rightarrow$ $\lambda_j^2=2\pi^2$, $a_j=1$, $b_j=1/(\sqrt{2}\pi)$ $u(x,y,t)=\sin{(\pi x)}\sin{(\pi y)}(\cos{(\sqrt{2}\pi t})+\sin{(\sqrt{2}\pi t)}/(\sqrt{2}\pi))$

References
[1] https://www.analysis.uni-hannover.de/fileadmin/analysis/Schrohe/Schrohe_Lehre/Partielle_Differentialgleichungen/pde7.pdf

To get the code go to my GitHub repository Wave

View Code

"""The code below was written by @author: https://github.com/DianaNtz and is an
implementation of the Runge Kutta method for the 2D wave equation"""

import numpy as np
import matplotlib.pyplot as plt
from matplotlib import cm
import os
import imageio.v2 as imageio
nfilenames = []
afilenames = []

#some initial values
nx=60
x0=0
xfinal=1
dx=(xfinal-x0)/(nx-1)
x=np.linspace(x0,xfinal,nx)

ny=60
y0=0
yfinal=1
dy=(yfinal-y0)/(ny-1)
y=np.linspace(y0,yfinal,ny)

nt=150
t0=0
tfinal=2/np.sqrt(2)
dt=(tfinal-t0)/(nt-1)
t=0

#finite difference derivatives
def d2x(D):
    Dxx=np.zeros((ny,nx), dtype='double')
    for j in range(0,ny):
        for i in range(0,nx):
                 if(i==0):
                     Dxx[j][0]=(D[j][2]-2*D[j][1]+D[j][0])/(dx**2)
                 if(i==nx-1):
                     Dxx[j][nx-1]=(D[j][nx-1]-2*D[j][nx-1-1]+D[j][nx-1-2])/(dx**2)
                 if(i!=0 and i!=nx-1):
                     Dxx[j][i]=(D[j][i+1]-2*D[j][i]+D[j][i-1])/(dx**2)
    return Dxx

def d2y(D):
    Dyy=np.zeros((ny,nx), dtype='double')
    for j in range(0,ny):
        for i in range(0,nx):
                 if(j==0):
                     Dyy[j][0]=(D[2][i]-2*D[1][i]+D[0][i])/(dy**2)
                 if(j==ny-1):
                     Dyy[ny-1][i]=(D[ny-1][i]-2*D[ny-1-1][i]+D[ny-1-2][i])/(dy**2)
                 if(j!=0 and j!=ny-1):
                     Dyy[j][i]=(D[j+1][i]-2*D[j][i]+D[j-1][i])/(dy**2)
    return Dyy



un1=np.empty([ny,nx], dtype='double')
un2=np.empty([ny,nx], dtype='double')
ua0=np.empty([ny,nx], dtype='double')
for j in range(0,ny):
        for i in range(0,nx):
            un1[j][i]=np.sin(np.pi*x[i])*np.sin(np.pi*y[j])
            un2[j][i]=np.sin(np.pi*x[i])*np.sin(np.pi*y[j])
            ua0[j][i]=np.sin(np.pi*x[i])*np.sin(np.pi*y[j])

Y,X= np.meshgrid(y, x)

#Runge Kutta time integration loop
for k in range(0,nt):
    ua=ua0*(np.cos(np.sqrt(2)*np.pi*t)+np.sin(np.sqrt(2)*np.pi*t)/(np.sqrt(2)*np.pi))


    k1un1=un2*dt
    k1un2=dt*(d2x(un1)+d2y(un1))

    k2un1=dt*(un2+0.5*k1un2)
    k2un2=dt*(d2x(un1+0.5*k1un1)+d2y(un1+0.5*k1un1))

    k3un1=dt*(un2+0.5*k2un2)
    k3un2=dt*(d2x(un1+0.5*k2un1)+d2y(un1+0.5*k2un1))

    k4un1=dt*(un2+k3un2)
    k4un2=dt*(d2x(un1+k3un1)+d2y(un1+k3un1))

    un1=un1+(k1un1+2*k2un1+2*k3un1+k4un1)/6
    un2=un2+(k1un2+2*k2un2+2*k3un2+k4un2)/6

    for j in range(0,ny):
        un1[j][0]=0
        un1[j][nx-1]=0
        un2[j][0]=0
        un2[j][nx-1]=0
    for i in range(0,nx):
        un1[0][i]=0
        un1[ny-1][i]=0
        un2[0][i]=0
        un2[ny-1][i]=0
    err=np.abs(ua-un1)
    if(k%5==0):

        fig = plt.figure(figsize=(14,12))
        axx = plt.axes(projection='3d')
        axx.plot_surface(Y, X, un1.T,cmap=cm.seismic,antialiased=False)
        axx.contourf(Y, X, un1.T,100, zdir='y', offset=x0,cmap=cm.binary)
        axx.contourf(Y, X, un1.T,100, zdir='x',offset=yfinal,cmap=cm.binary)
        axx.view_init(azim=110,elev=15)
        axx.set_xlabel('y', labelpad=30,fontsize=34)
        axx.set_ylabel('x',labelpad=30,fontsize=34)
        axx.set_ylim(x0,xfinal)
        axx.set_xlim(y0,yfinal)
        axx.set_zlabel('$u_n(x,y)$',labelpad=40,fontsize=34)
        axx.set_zlim(-1, 1)
        axx.zaxis.set_tick_params(labelsize=21,pad=18)
        axx.yaxis.set_tick_params(labelsize=21)
        axx.xaxis.set_tick_params(labelsize=21)
        plt.title("t=".__add__(str(round(t,2))),fontsize=34 )
        fig.subplots_adjust(left=0, right=1, bottom=0, top=1)
        nfilename ='nbla{0:.0f}.png'.format(int(k/5))
        nfilenames.append(nfilename)
        plt.savefig(nfilename,dpi=70)
        plt.close()


        fig = plt.figure(figsize=(14,12))
        axx = plt.axes(projection='3d')
        axx.plot_surface(Y, X, ua.T,cmap=cm.seismic,antialiased=False)
        axx.contourf(Y, X, ua.T,100, zdir='y', offset=x0,cmap=cm.binary)
        axx.contourf(Y, X, ua.T,100, zdir='x',offset=yfinal,cmap=cm.binary)
        axx.view_init(azim=110,elev=15)
        axx.set_xlabel('y', labelpad=30,fontsize=34)
        axx.set_ylabel('x',labelpad=30,fontsize=34)
        axx.set_ylim(x0,xfinal)
        axx.set_xlim(y0,yfinal)
        axx.set_zlabel('$u_a(x,y)$',labelpad=40,fontsize=34)
        axx.set_zlim(-1, 1)
        axx.zaxis.set_tick_params(labelsize=21,pad=18)
        axx.yaxis.set_tick_params(labelsize=21)
        axx.xaxis.set_tick_params(labelsize=21)
        plt.title("t=".__add__(str(round(t,2))),fontsize=34 )
        fig.subplots_adjust(left=0, right=1, bottom=0, top=1)
        afilename ='abla{0:.0f}.png'.format(int(k/5))
        afilenames.append(afilename)
        plt.savefig(afilename,dpi=70)
        plt.show()

        print(np.max(err))

    t=t+dt
#creating animations
with imageio.get_writer('2Dwavenumerical.gif', mode='I') as writer:
    for filename in nfilenames:
        image = imageio.imread(filename)
        writer.append_data(image)
for filename in set(nfilenames):
    os.remove(filename)

with imageio.get_writer('2Dwaveanalytical.gif', mode='I') as writer:
    for filename in afilenames:
        image = imageio.imread(filename)
        writer.append_data(image)
for filename in set(afilenames):
    os.remove(filename)
