Barycentric Interpolation

"""The code below was written by @author: https://github.com/DianaNtz and is an
implementation of Barycentric Lagrange Interpolation in 1D and 2D."""

import numpy as np
import matplotlib.pyplot as plt


#create grid
zmin=0
zmax=np.pi
N=21

def grid(xmin,xmax,Nx):
     x=np.zeros(Nx)
     cx=(xmax-xmin)/2
     dx=(xmax+xmin)/2
     for j in range(0,Nx):
         x[j]=-np.cos(j*np.pi/(Nx-1))*cx+dx
     return x
#create test function 1D
def f(z):
    return np.exp(-z**2)

zz=grid(zmin,zmax,N)
fzz=f(zz)

#1D Interpolation
def omega(zz):
    N=len(zz)
    w=np.zeros(N)
    for i in range(0,N):
        zi=zz[i]
        wi=1
        for j in range(0,i):
            wi*=zi-zz[j]
        for j in range(i+1,N):
            wi*=zi-zz[j]
        w[i]=1/wi
    return w
w=omega(zz)

def p(z,fzz):
    result=np.zeros(len(z))
    for i in range (0,len(z)):
       C1=0
       C2=0
       for j in range (0,len(w)):
          if(np.abs(z[i]-zz[j])<0.00001):
              C1=1
              C2=fzz[j]
              break
          else:
             C1=C1+w[j]/(z[i]-zz[j])
             C2=C2+w[j]/(z[i]-zz[j])*fzz[j]
       result[i]=C2/C1
    return result

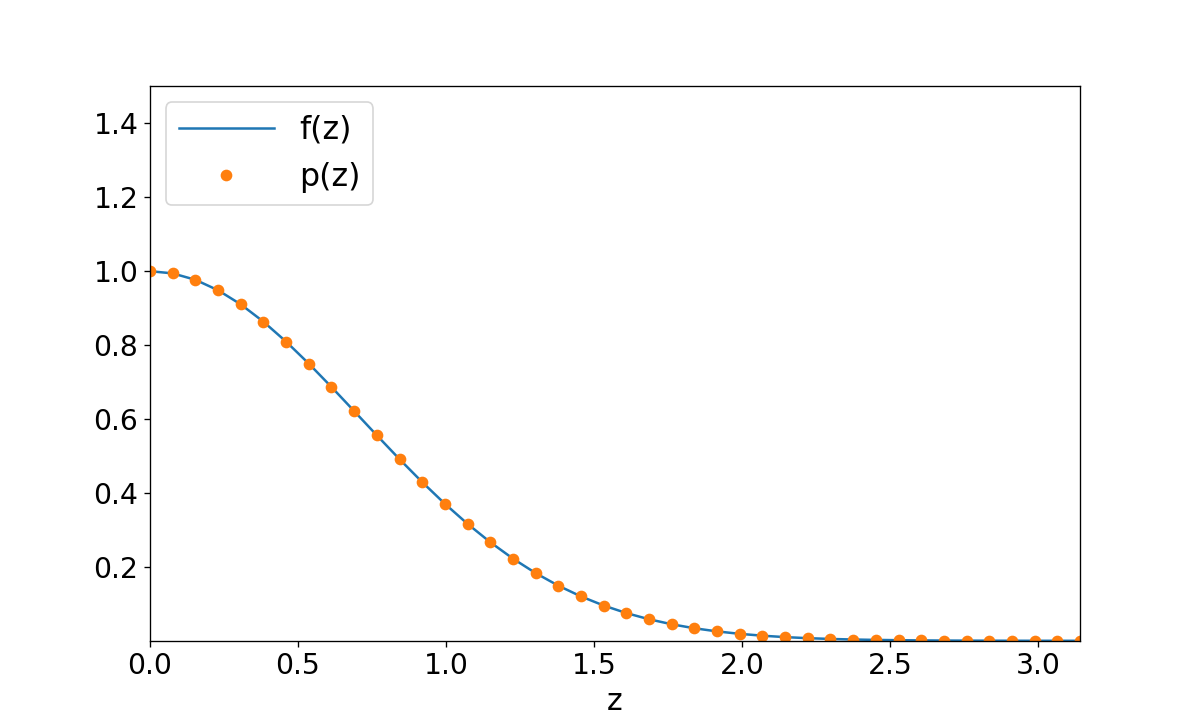

#interpolate test function into new grid
z=np.linspace(zmin,zmax,2*N)

ax1 = plt.subplots(1, sharex=True, figsize=(10,6))
plt.plot(z,f(z),"-",label="f(z)")
plt.plot(z,p(z,fzz),"o",label="p(z)")
plt.xlabel("z",fontsize=18)
plt.yticks(fontsize= 17)
plt.xticks(fontsize= 17)
plt.xlim(zmin,zmax)
plt.ylim(np.min(f(z)),np.max(f(z))+0.5)
plt.legend(loc=2,fontsize=19,handlelength=3)
plt.savefig("interpolation.png",dpi=120)
plt.show()

#2D Interpolation
def L(x0,x):
     Lx=np.zeros(len(x))
     ka=np.where(np.abs(x-x0)<=0.000001)
     if(ka[0].size>0):
        Lx[ka]=1
        return Lx

     wx=omega(x)
     C1x=np.sum(wx/(x0-x))
     C2x=wx/(x0-x)
     Lx=C2x/C1x
     return Lx

def  interpolation2D(x0,y0,x,y,f):

     Lx=L(x0,x)
     Ly=L(y0,y)
     C=0
     L0=np.kron(Lx,Ly)
     C=np.dot(L0,f)
     return C
#create grid
Nx=60
Ny=30
xmin=0
xmax=1
ymin=0
ymax=np.pi

x=grid(xmin,xmax,Nx)
y=grid(ymin,ymax,Ny)
#create 2D test function
def fx(x):
    return np.exp(-x**2)
def fy(y):
    return np.exp(-(y-0.5)**2)

fxx=fx(x)
fyy=fy(y)
f=np.kron(fxx,fyy) #f[i+j*Ny] j x, i y

x0,y0=0.5,0.6
#compare interpolated with analytical result
print(interpolation2D(x0,y0,x,y,f))
print(fx(x0)*fy(y0))
